Fully Automated In-line Double Flank Gear Gauging

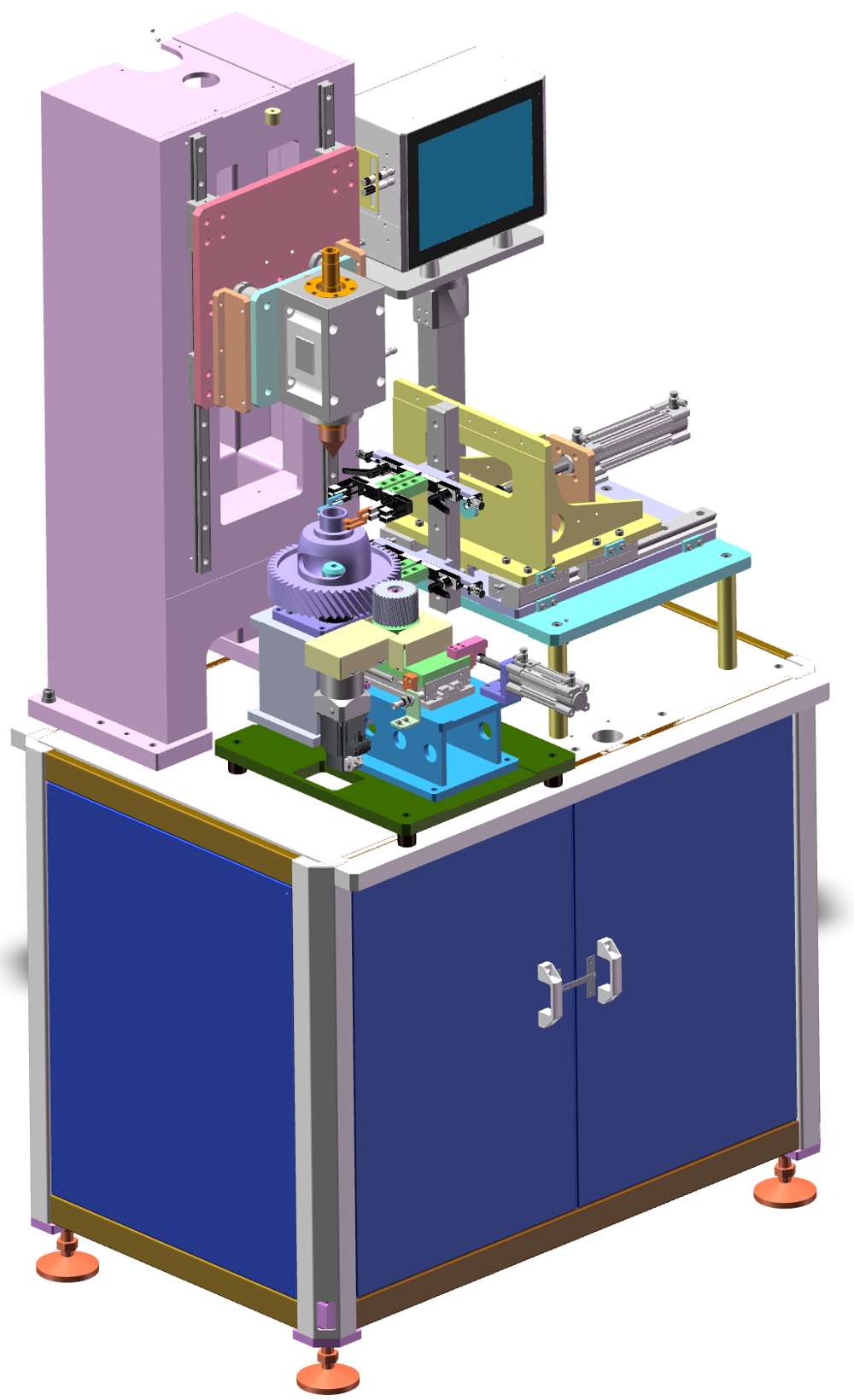

A 100% fully automated in-line double flank gear gauging machine — dynamic measurement with modular fixtures for rapid model changeover, covering disc gears, shaft gears, differential cases and internal ring gears.
The gear double flank tester supports automatic robot loading and unloading for 100% fully automated in-line gauging. Measurement is dynamic, and its modular fixture architecture allows rapid model changeover between different workpiece types.
Automatic journal datum precision compensation keeps results accurate, and the machine supports both spur gears and helical gears. It is equipped with Grade-4 master gears. Workpiece categories include disc gears, shaft gears, differential cases with reducer gear and internal ring gears. Typical delivery is 8 to 12 weeks.
Robot loading and unloading is supported for hands-off operation.
Fully automated gauging integrated into the production line.
Measurement is taken dynamically during the rolling cycle.
Rapid model changeover between different workpiece types.
Datum errors are compensated automatically, without manual correction.
Supports both spur gears and helical gears.
Equipped with Grade-4 master gears for a reliable reference.
Typically 8 to 12 weeks.
Flat disc-type gears measured on the same fixture platform.
Shaft-mounted gears, held on a vertical spindle axis.
Differential cases carrying the reducer gear.
Internal ring gears and other similar workpieces.
