In-line automated inspection for EV motor rotors and spline shafts.
An in-line gauging station for spline shafts on e-drive and transmission lines. The shaft is fed synchronously while the measuring head scans continuously along the full spline length, capturing over-pin dimension (M-value) and spline radial and axial runout in a single pass, with no offline sampling.

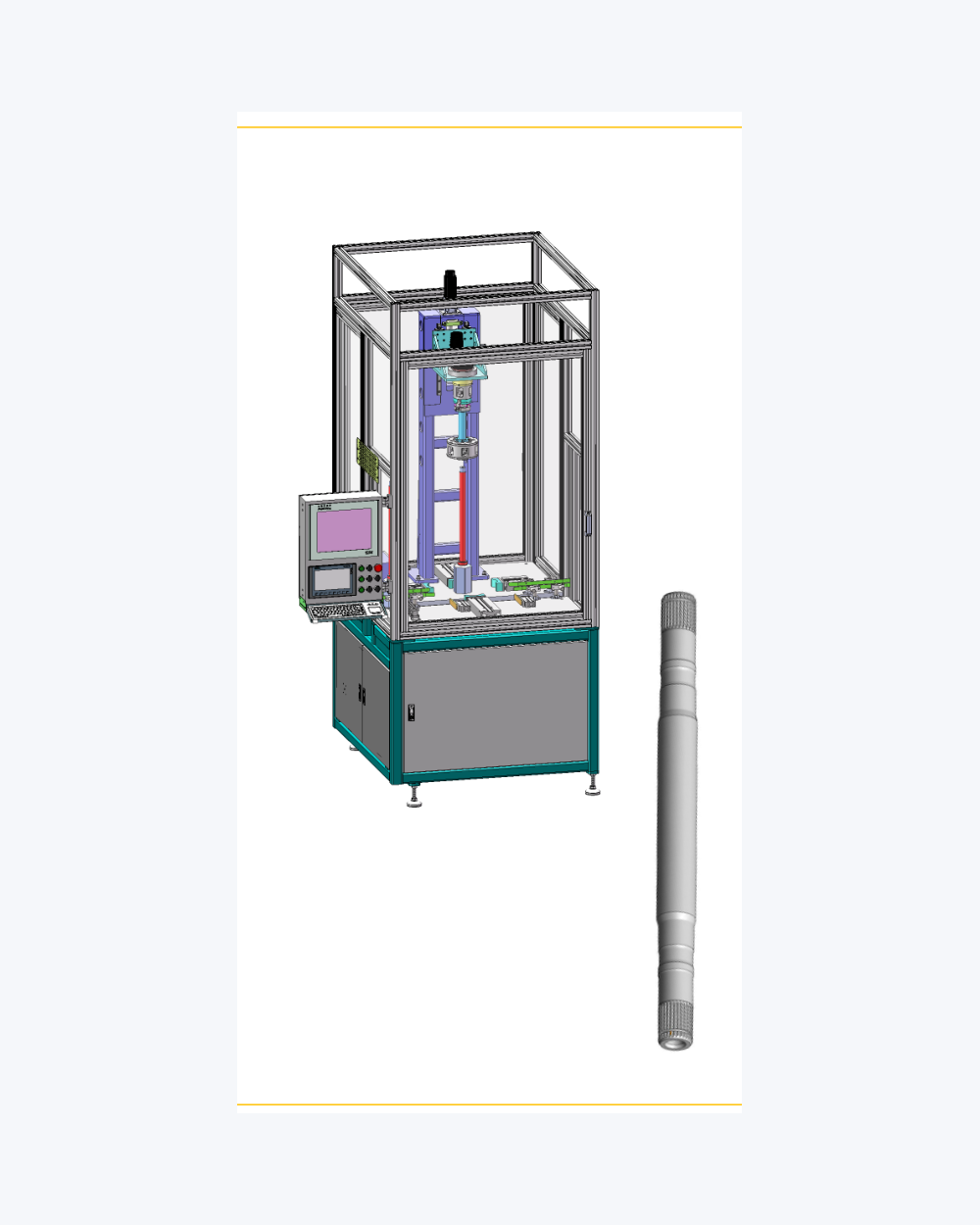

Compact in-line station with an integrated measuring head and operator interface, designed to drop into an existing production line.

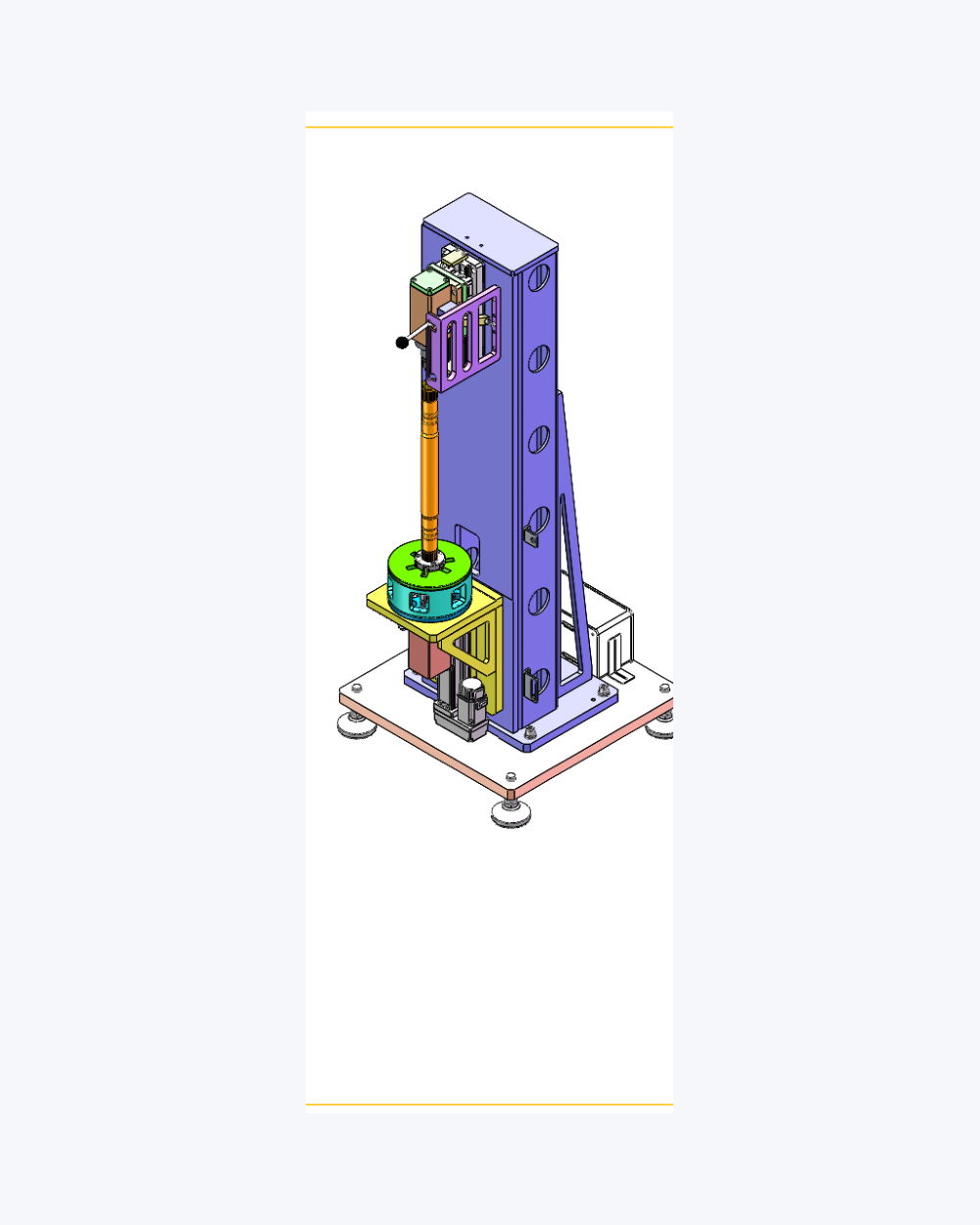

A floating fixture holds the spline shaft during continuous axial scanning across the full tooth length.

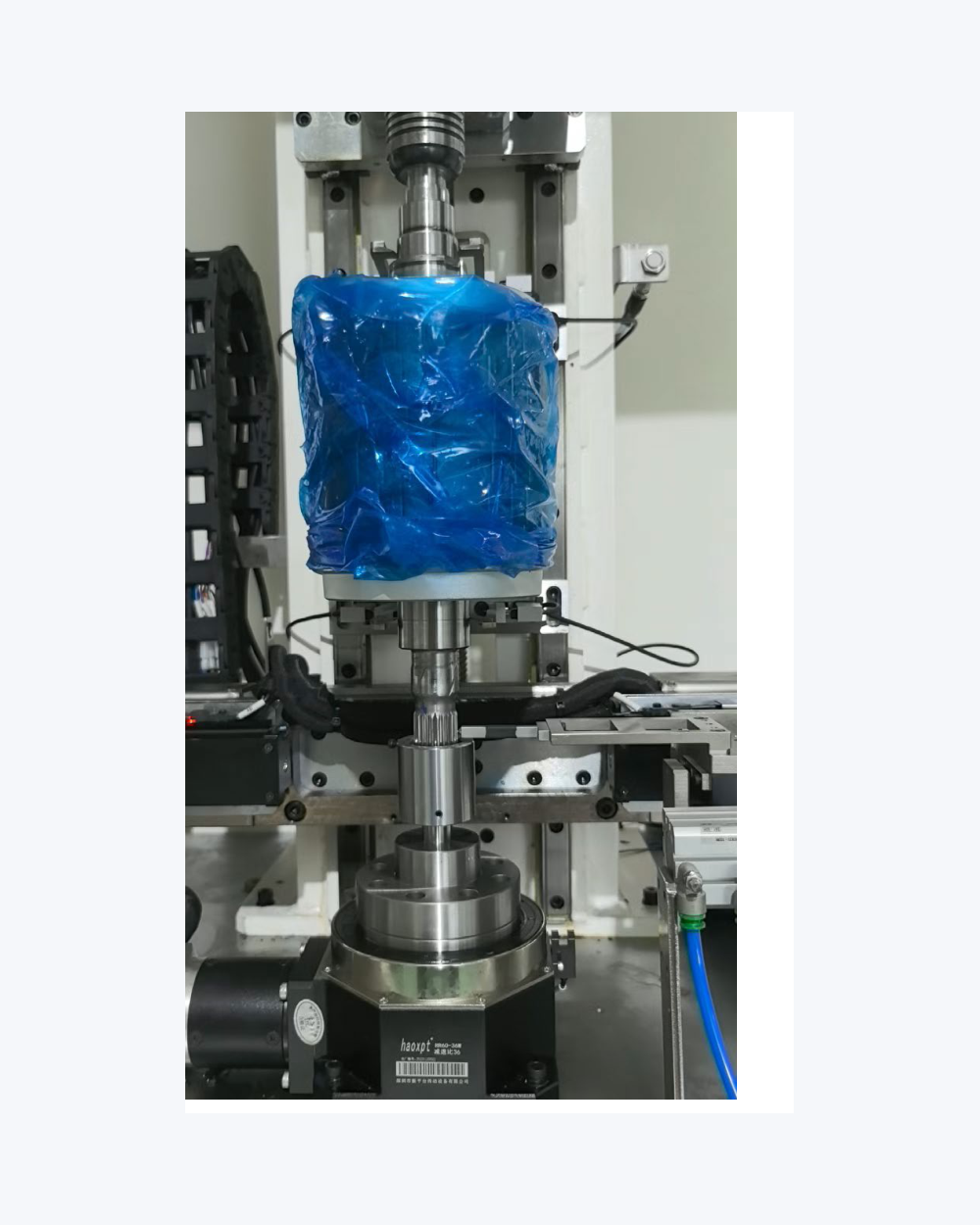

Installed directly on the line, gauging each spline shaft as it is produced.
Continuous scanning across the full length of the spline in a single pass.
Synchronous feeding with multi-sensor dynamic sampling, measured at production rate.
Proprietary floating fixture design with quick changeover between part variants.
Over-pin dimension measured directly on the line, without moving the part offline.
Radial and axial runout of the spline form captured in the same measuring cycle.
Repeatability of 1.0 um or better supports tight tolerance control on splined shafts.
An in-line gauging station for permanent-magnet rotors. Magnetic field shielding protects the measurement system from the rotor's own magnetic field, so rotor cores and shafts can be gauged repeatably, directly on the e-motor production line.

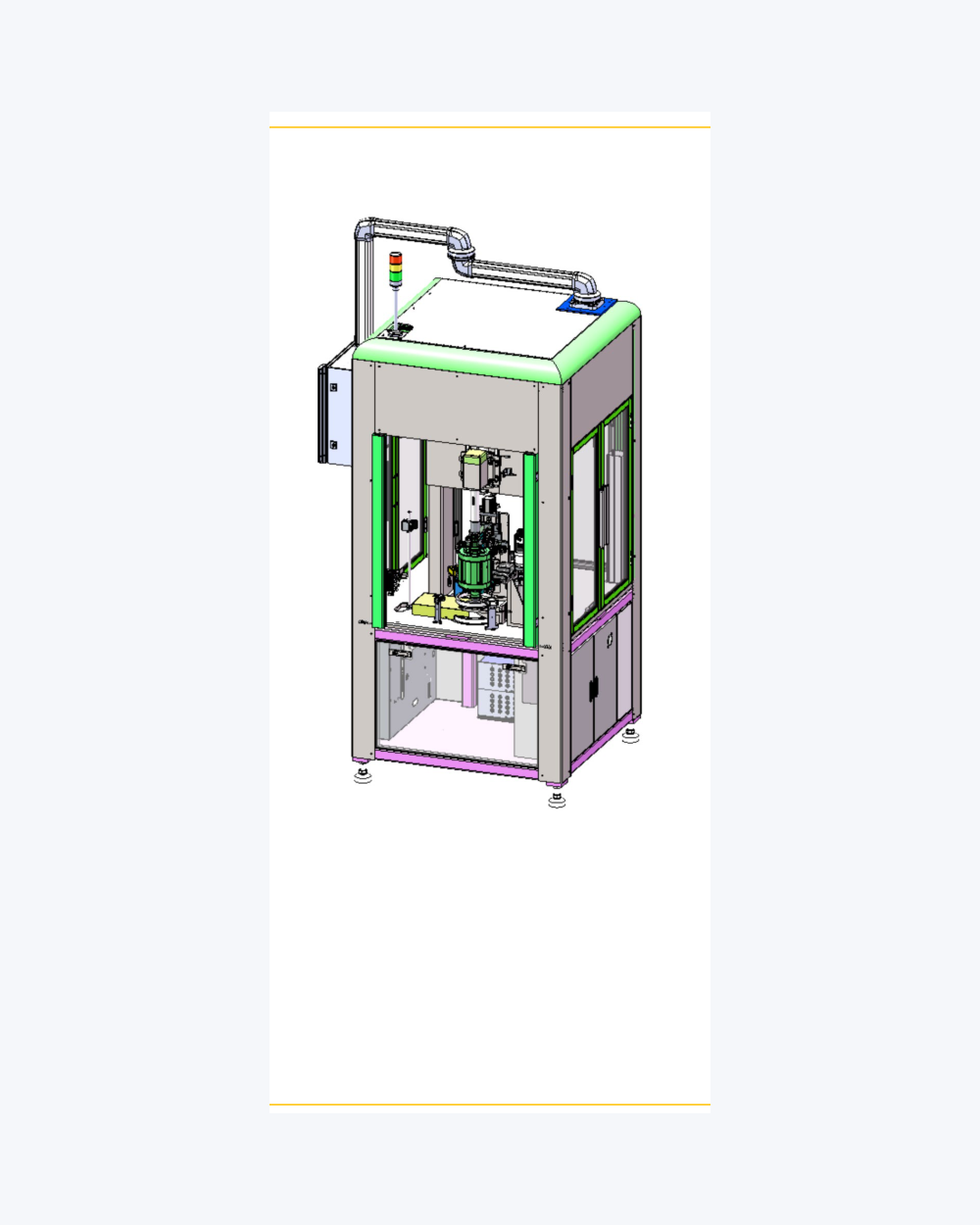

Enclosed in-line station with integrated gauging head, safety enclosure and operator interface.

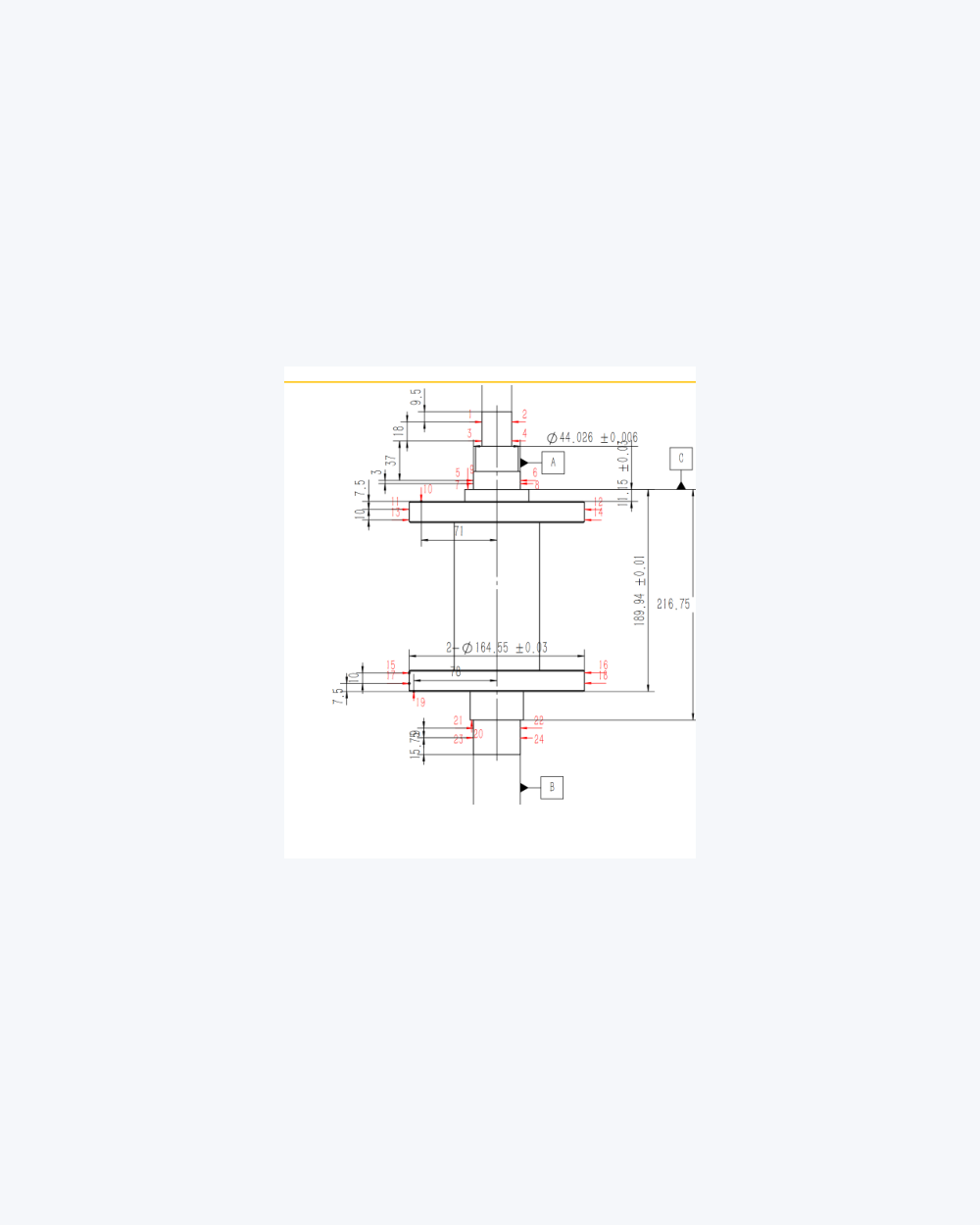

Rotor bore, journal and overall length gauged to the tolerances called out on the component drawing.

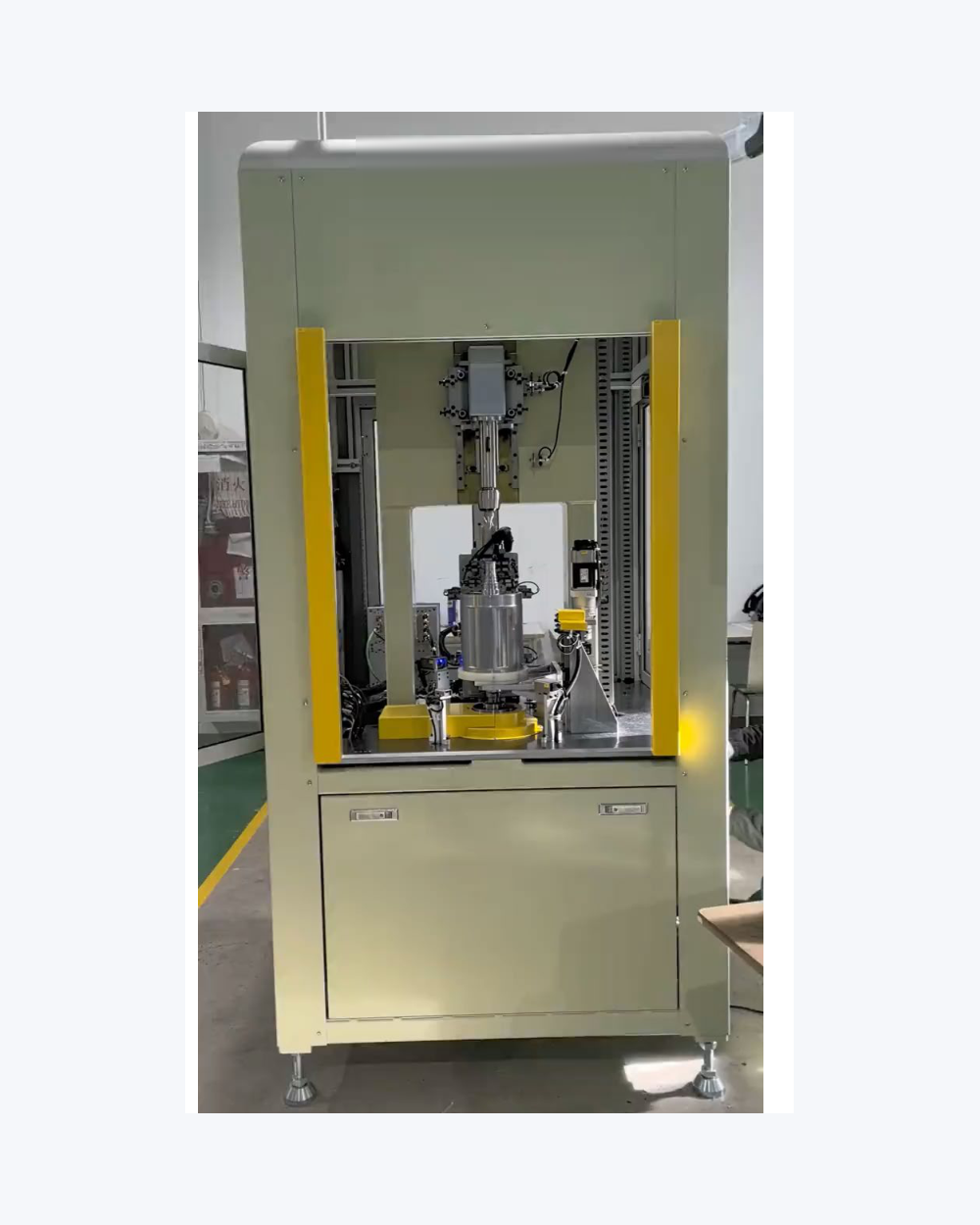

Installed on the line, gauging rotors as they are produced.
Shielding for permanent-magnet rotors keeps the rotor's magnetic field from disturbing the gauging system.
Repeatability of 1.0 um or better for in-line rotor dimensional gauging.
Automatic loading, gauging and unloading with no operator intervention in the measuring cycle.
Configured for rotors with the magnets already installed.
Send us your part drawing and target cycle time and we will recommend the right configuration.
