Dynamic Measurement, NG Sorting and Laser Marking

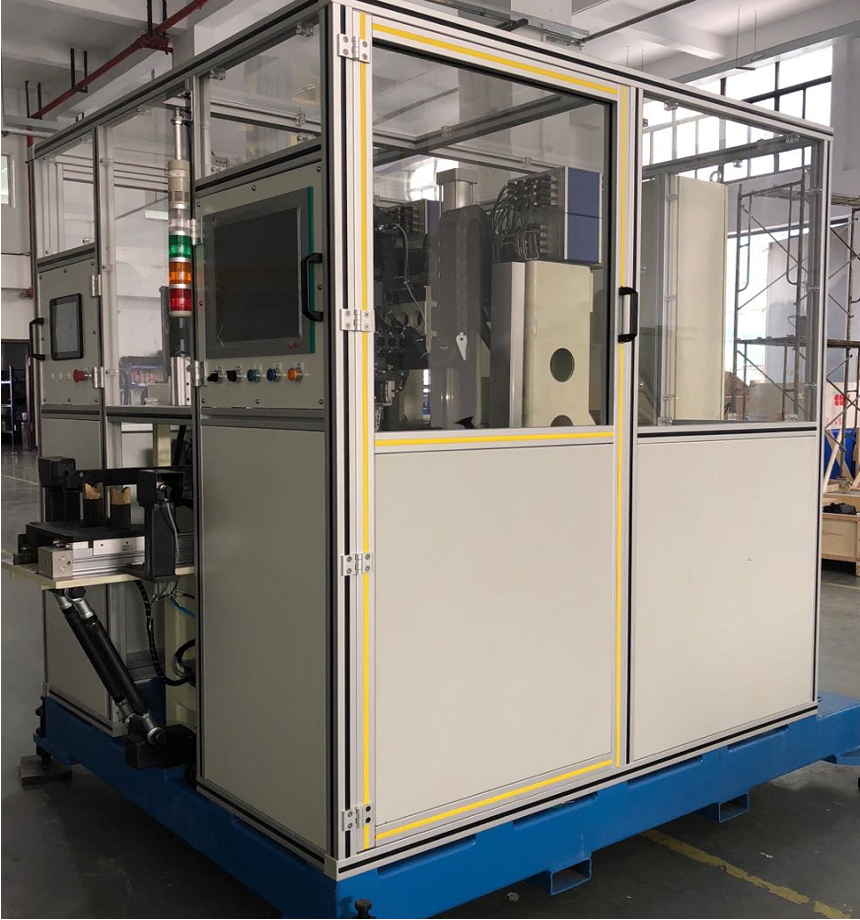

A fully automatic final inspection machine for crankshafts — dynamic measurement of every journal, form and position parameter, with NG part sorting, laser marking and a 60-second cycle time.
The fully automatic final inspection machine for crankshafts dynamically measures all parameters — 5 main journals (3 sections), 4 pin journals, flange journal and post end (2 sections) — checking runout, roundness, cylindricity, barreling and thrust width. Measurement is fully automatic, including NG part sorting and laser marking.
Manual, robot or truss loading is supported for 100% unmanned final inspection, and auto-calibration performs fully automatic zero-calibration by adjustable time or cycle intervals. For pin journal diameter changes within 4mm, zero mechanical adjustment is needed — simply swap the master part. Cycle time is 60 seconds per part, drastically reducing labour costs.
Includes NG part sorting and laser marking in the same cell.
Manual, robot or truss loading for 100% unmanned final inspection.
Fully automatic zero-calibration by adjustable time or cycle intervals.
5 main journals (3 sections), 4 pin journals, flange journal and post end (2 sections).
Runout, roundness, cylindricity, barreling and thrust width.
For pin journal diameter changes within 4mm, zero mechanical adjustment is needed — simply swap the master part.

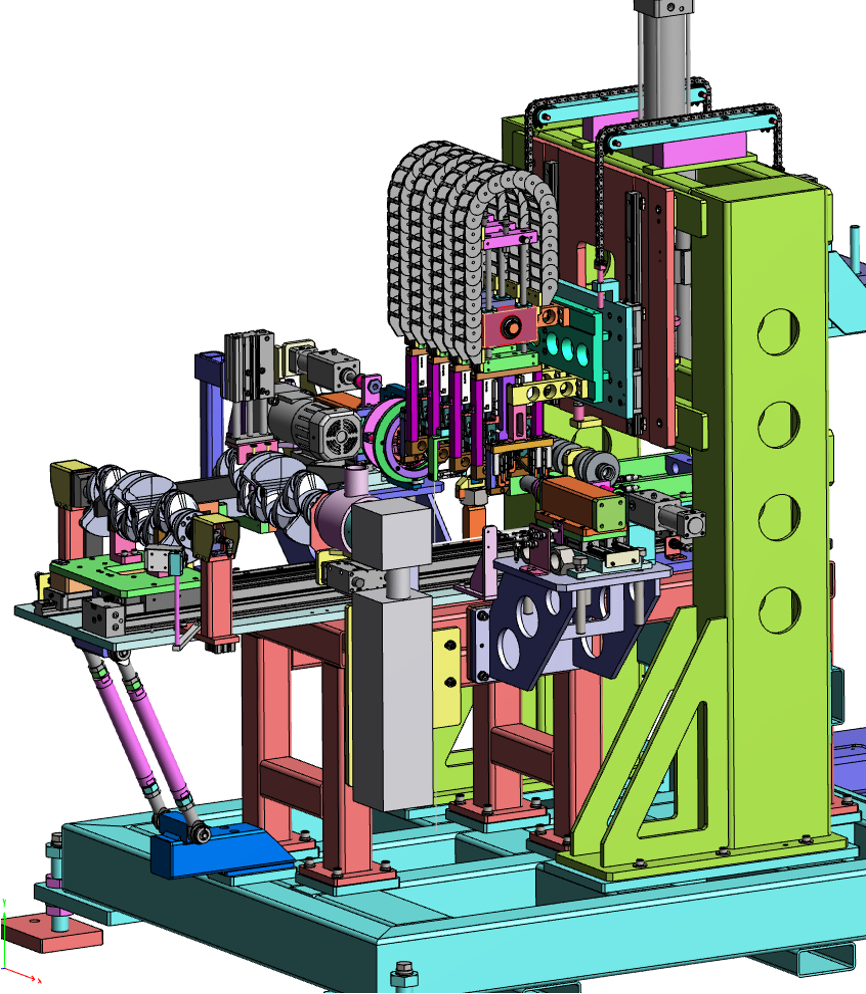

Dynamic probing architecture — every journal measured in one cycle

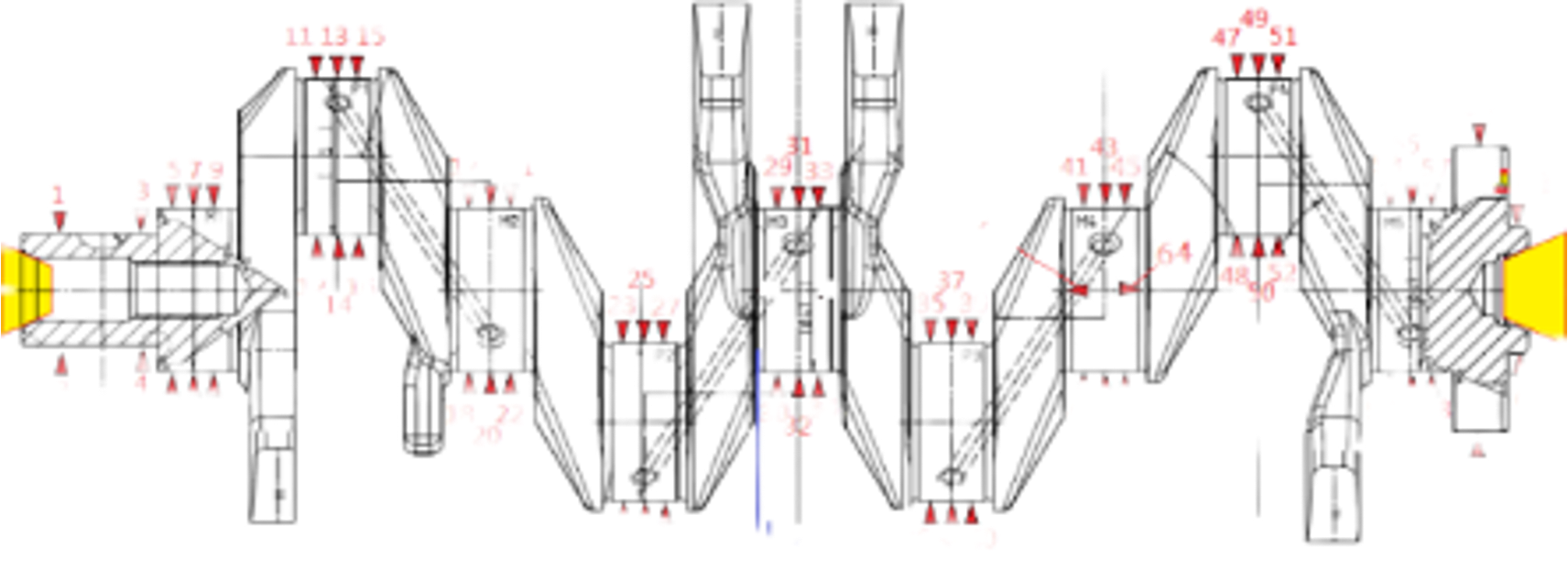

Crankshaft measurement points — main journals, pin journals, flange journal and post end
