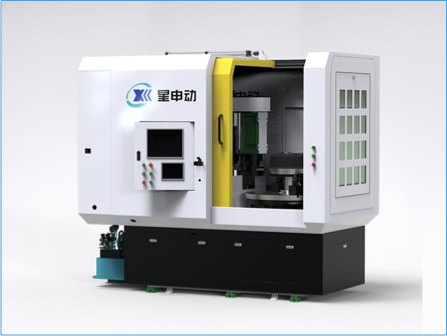

Brake Drum Fully Automatic Balancing Machine
MRLing's fully automatic balancing machine for brake drums — unbalance measurement and vertical or horizontal drilling correction in one cycle, for workpieces up to 100kg and 500mm diameter.
The XYLD-100-4P-10 is a fully automatic balancing machine for brake drums, combining unbalance measurement with vertical or horizontal drilling correction in a single cycle. It handles workpieces up to 100kg and 500mm in diameter, at a balancing speed of 500-800 r/min.
Unbalance is measured in 10-15 seconds and corrected by drilling 8mm deep in about 4 seconds, with an average cycle time of 90 seconds — reducing unbalance by 90% to a residual level of 2 g·mm/kg. The machine runs on an external AC 380V supply with 0.4-0.6 MPa air; balancing motor 4.4kW, drilling motor 2.2kW, total machine power 15kW. Non-standard customization is available.
Measures unbalance at 500-800 r/min, with each measurement taking 10-15 seconds.
Vertical or horizontal drilling removes material to correct unbalance, 8mm deep in about 4 seconds.
Reduces unbalance by 90%, achieving a residual unbalance down to 2 g·mm/kg.
Designed for brake drums up to 500mm diameter and 100kg workpiece weight.
Measurement and drilling correction run in one automatic cycle, averaging 90 seconds.
Configurations can be tailored to specific production requirements.
